DESCRIPTION

Basic Info.

Model NO.	1008, 1108 to 7060
Application	Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Motorcycle, Food Machinery, Mining Equipment, Agricultural Machinery, Fan
Surface Treatment	Phosphate Black
Material	Cast Iron
Quality Control	100% Inspection
Stamp	Laser
Package	Plastic Bag and Carton Box
Taper	8 Degree
Transport Package	Wooden Box
Specification	1008, 1108 to 6050
Trademark	OKE
Origin	China
Production Capacity	1000000PCS/Year

Packaging & Delivery

Package Size200.00cm * 200.00cm * 100.00cm Package Gross Weight3.000kg

Product Description

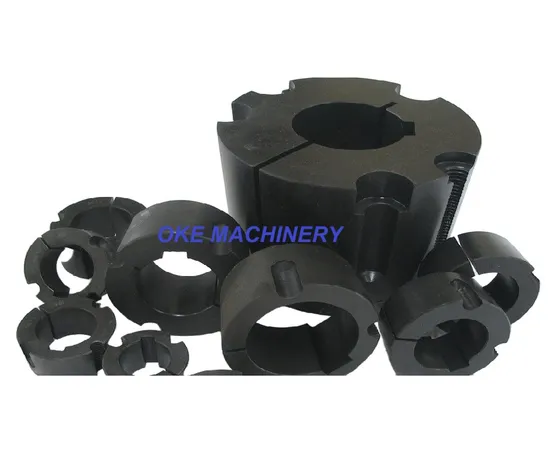

We can offer you taper lock bush,spilt taper bush and QD bush. Material: Cast iron, steel. Taper bush Size: 1008,1108,1210,1215,1310,1610,1615,2012,2517,2525,3020,3030,3525,3535,4030,4040,4535,4545,5040,5050,6050,7060 Surface treatment: Phosphate black Application: locking for pulley,coupling,sprocket or other parts on shaft Taper lock bushes, also known as taper lock bushings or taper bushes, are mechanical components used for securing rotating components, such as pulleys, sprockets,coupling,bolt-on hubs,weld-on hub or gears, onto shafts in various industrial applications. They provide a secure and concentric connection between the shaft and the mounted component. Taper lock bushes are commonly used to transmit torque and rotation between the shaft and the mounted part. The taper lock bushing is pre-bored and keyed to match the required shaft and keyway diameters.The outside of the bush is tapered to match the component bore that is to be located on the shaft. A taper lock bushing has a taper of eight degrees,which reduces the length-through-bore. Before installation,make sure to clean the bushings thoroughly to ensure they seat properly. Benefits of taper lock bush:Ease of installation and removal,equivalent to a shrink-on kit on uniform load applications and thus eliminating the cost of a key,no costly reboring(full range of both metric and imperial bore available). Welcome inquire us for more detail

Taper lock bush	bore / mm
1008	10 to 25
1108	10 to 28
1210,1215	11 to 32
1310	14 to 35
1610,1615	14 to 42
2012,2017	18 to 50
2517,2525	20 to 60
3020,3030	25 to 75
3525,3535	35 to 90
4030,4040	40 to 100
4535,4545	55 to 110
5040,5050	60 to 125
